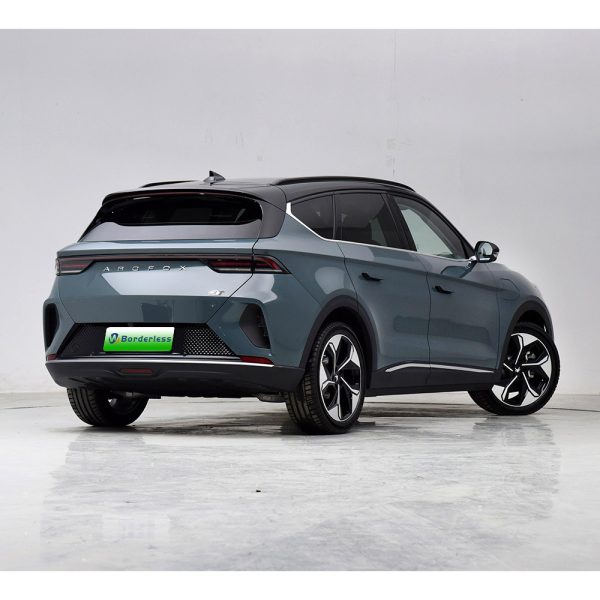

Arcfox Alpha T

The ARCFOX Alpha T is a mid-size SUV under the ARCFOX brand. Developed based on the globally leading and open IMC intelligent module standard architecture, ARCFOX has created a new benchmark for high-end intelligent pure electric SUVs: the Arcfox Alpha T.
  • Range480-653KM
  • Power (peak)160-320KW
  • Battery capacity93.6KWH
  • Vehicle TypeSUV
  • CHARGE(10-80%)36minutes


    How Can We Help You?

    Borderless customer care is here to help you anytime.

    Free Quote


    • The dimensions of the Arcfox Alpha T are 4788×1940×1683mm (length x width x height), with a wheelbase of 2915mm, front track of 1660mm, and rear track of 1640mm. The car can accommodate 5 people.
    • The Arcfox Alpha T delivers a maximum horsepower of 435Ps, maximum power of 320kW, and maximum torque of 720N.m.
    • The Arcfox Alpha T utilizes a ternary lithium battery with an energy capacity of 93.6kWh, supporting fast charging that can reach 80% in as little as 30 minutes. It achieves the longest pure electric range of 653km (NEDC) or 653km (CLTC).

    Highlighted Features

    • α-Pilot Level 2 Advanced Driver-Assistance System
      Featuring multiple functions such as active safety and driver assistance, the Arcfox Alpha T is equipped with the α-Pilot 2.5-level automatic driving system. Adopting Bosch's latest generation solution, it consists of one domain controller, one third-generation 2 million pixel front camera, four second-generation surround view cameras, five fifth-generation millimeter wave radars, and twelve sixth-generation ultrasonic sensors. With a fusion perception distance of up to 220 meters, it enables faster response and wider detection range for assisted driving, easily achieving functions such as adaptive cruise control, lane-keeping, lane change, and forward emergency collision avoidance within 220 meters, and also features forward/rear cross-traffic warnings.
    • ICA Integrated Cruise Assist System
      The Arcfox Alpha T is equipped with Bosch's world-first Highway Assist plus function. Compared to traditional Level 2 partial autonomous driving, the enhanced highway assist adds an Automated Lane Change function. Within a speed range of 60-130km/h, when the driver activates the turn signal lever, the system determines if the vehicle meets the conditions for lane change. With driver confirmation, the system automatically completes the lane change, significantly enhancing safety and comfort for drivers during high-speed cruising.
    • ASL Intelligent Speed Limit Cruise Control
      When ACC adaptive cruise control is activated, the system controls the vehicle speed within the specified range by detecting speed limit signs through high-definition map data or the forward-facing high-resolution camera. This avoids safety risks and unnecessary fines caused by overspeeding while in ACC mode.


    Level Mid-Size SUV
    Energy Type Electric
    Sale Time 2023-06-16
    Manufacturer BAIC
    Cltc Range [Km] 480
    Country Of Origin China


    Body Structure 5-Door 5-Seat Suv
    Curb Weight [Kg] 2030
    Length*Width*Height [Mm] 4788*1940*1683
    Wheelbase [Mm] 2915
    Front Tire Specification ● 245/45 R20
    Rear Tire Specification ● 245/45 R20


    Motor Type Permanent Magnet Synchronous
    Motor Max Power (Kw)
    Motor Total Torque [N·M] 360
    Battery Capacity [Kwh] 94.5
    Official 0-100Km/H Acceleration [s] 8.4
    Drive Form FF
    Battery Type Ternary Lithium Battery
    Battery Brand CATL
    DC Charging Time [Min] 30
    AC Charge Time[H] 11.5
    Power Consumption[Kwh/100Km]



    How is the safety performance of the Arcfox Alpha T?

    With its "cage-style" steel-aluminum hybrid design, the Arcfox Alpha T takes into consideration both driving experience and safety performance. The framework has high rigidity yet remains lightweight. The upper body structure adopts a steel-aluminum design, with aluminum alloy accounting for 51.3% of the body weight, and the lower body using even more aluminum alloy, reaching 78.9% usage. The overall torsional stiffness of the vehicle reaches 55kNm/°. The cage-style frame structure made of high-strength steel improves the safety performance of the body. Critical components such as the A-pillar, B-pillar, and center channel of the cage structure are made of hot-formed steel with a strength exceeding 1500MPa, capable of withstanding pressures of over 15 tons per square centimeter.
