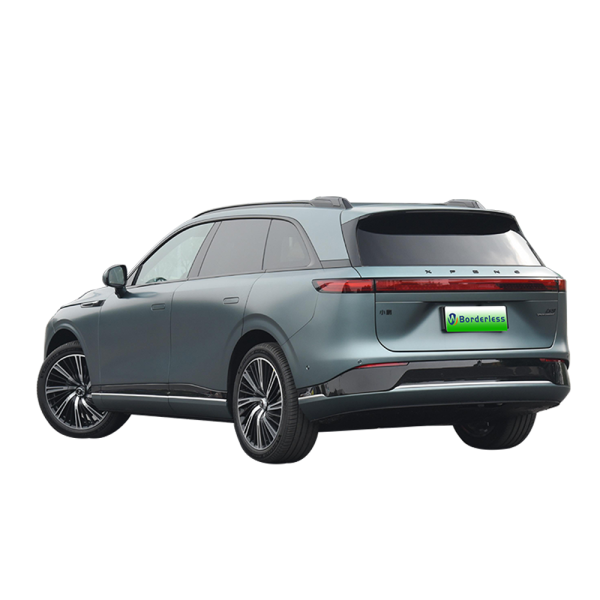

Xpeng G9

Introduction

• Xpeng G9 is positioned as a large five-seater pure electric SUV, with a body size of 4891/1937/1680mm and a wheelbase of 2998mm.
• Xpeng G9 is equipped with two types of batteries: lithium iron phosphate and ternary lithium. Among them, the lithium iron phosphate battery version has a battery capacity of 78.2kWh, and the cruising range under CLTC conditions is 570km; the ternary lithium battery version has a battery capacity of 98kWh, and has two cruising ranges under CLTC conditions of 650km and 702km.
• Xpeng G9 has two sets of power systems, rear drive and four-wheel drive dual motors. The rear motors use 230kW permanent magnet synchronous motors; the four-wheel drive version also adds a 175kW front AC asynchronous motor, and the comprehensive power of the system reaches 405kW (550Ps). , the acceleration from zero to 100 is only 3.9 seconds. The electric drive system of Xpeng G9 is highly integrated, with a total power density of 2.2kW/kg and a torque density of 44N m/kg.
• G9 is the first mass-produced car based on the 800V high-voltage SiC platform in China, which can achieve powerful long-term battery life and overcharging capability. Thanks to the perfect combination of the powerful XPower 3.0 power system and 480kW supercharging pile, the charging speed is as high as Charging for 5 minutes, the battery life is more than 200km.

Highlighted Features

• Super fast charging technology
  G9 is the first Chinese brand electric car that supports 800V high-voltage charging. With the 480kW charging pile released by Xpeng earlier, Xpeng claims that it can "charge for 5 minutes and have a battery life of 200 kilometers."
• Assisted driving
  The Xpeng G9 uses 31 sensing components, including 2 lidars, 12 cameras, 5 millimeter-wave radars, and 12 ultrasonic sensors, which can be said to be armed to the teeth. In addition, the vehicle also uses two NVIDIA Orin chips, with a combined computing power of 508TOPS.
• 3.5D concert hall
  With the help of 28 acoustic units and core algorithms in the car, Xpeng has raised the audio performance of the G9 to the level of a "concert hall", which is officially called the Xopera Xpeng Concert Hall. With the synchronous linkage of ambient lights, seats, audio, and fragrance systems in the car, users can enjoy the experience of a 5D concert hall in the car.
• Dual cavity air suspension system
  Xpeng G9 adopts double-wishbone independent front suspension + multi-link independent rear suspension and air suspension, in which the air suspension adopts double-cavity air suspension, and the adjustable stroke of the vehicle suspension is 50mm up and down. There are five types in total. The height is user selectable.
